Adjustable cargo bars — RT22-0101 / RT22-0102 / RT22-0103

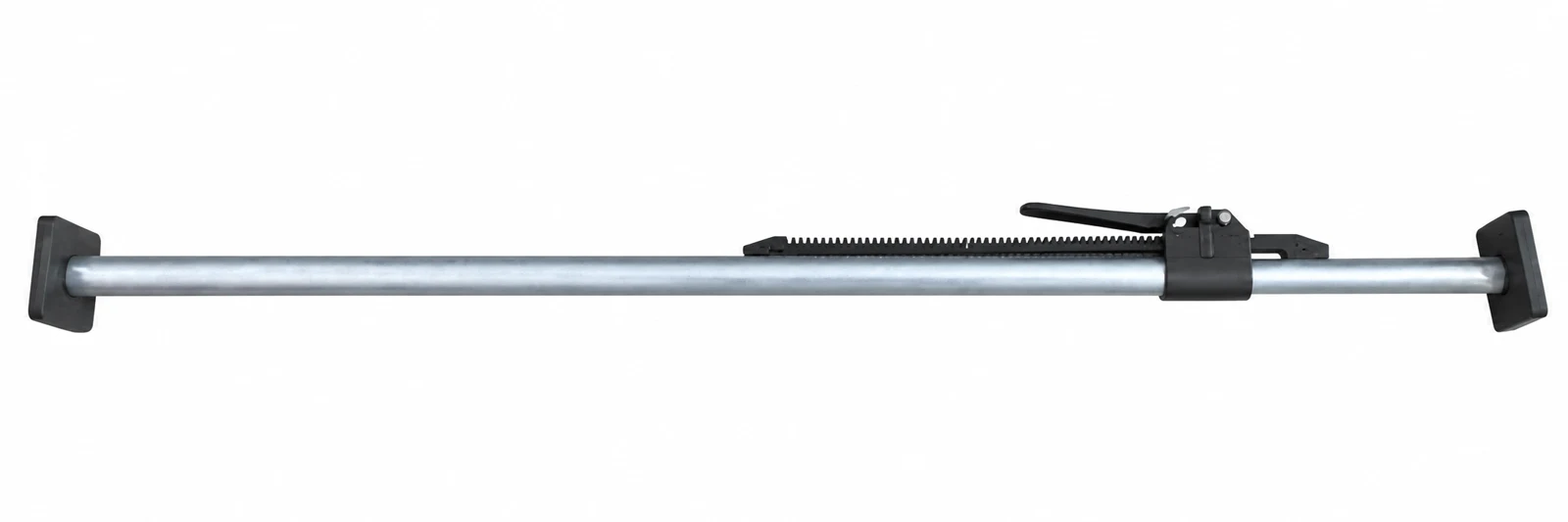

RT22-0101 / RT22-0102 / RT22-0103 Steel cargo bar with rubber foot pads, shown for RT22-0101–0103. Other tube and foot-pad configurations are listed separately in the model table.
Adjustable cargo bars — RT22-0101 / RT22-0102 / RT22-0103

Steel cargo bar with rubber foot pads, shown for RT22-0101–0103. Other tube and foot-pad configurations are listed separately in the model table.

Truck & trailer hardware

Adjustable cargo bars

Adjustable steel and aluminum cargo bars with rubber or plastic foot pads for enclosed truck and trailer loads.

Reference30 catalog references
Request a quote Ask for the catalog

MOQ, customization and lead time depend on the selected model and order.

Compare 30 catalog references ↓

Reference specifications

Adjustable cargo bars reference specifications
Product rangeAdjustable cargo bars
Reference configurations30

Specifications shown are catalog references. Your quotation confirms the current model, drawing and agreed requirements for the order.

Quotation requirements

Specify your application.

  • Model or configuration and order quantity
  • Mounting dimensions and matching components
  • Required performance and supporting documentation
  • Finish, packaging and destination
Send your requirements ↗

Models & specifications

30 catalog references

Compare catalog references below. Select a reference to include it in your inquiry; current specifications and options are confirmed with your quotation.

Adjustable cargo bars: catalog model comparison
ModelTube / constructionFoot padsAdjustment rangeCatalog weightInquiry
RT22-0101Galvanized steel, 1.5 inRubber, 4 × 4 in89–104 in5.50 kgRequest quote
RT22-0102Galvanized steel, 1.5 inRubber, 4 × 4 in92.5–107.5 in5.65 kgRequest quote
RT22-0103Galvanized steel, 1.5 inRubber, 4 × 4 in101–116 in5.90 kgRequest quote
RT22-0108Galvanized steel, 1.5 inPlastic, 2 × 4 in46–61 in4.00 kgRequest quote
RT22-0109Galvanized steel, 1.5 inPlastic, 2 × 4 in60–75 in4.40 kgRequest quote
RT22-0110Galvanized steel, 1.5 inPlastic, 2 × 4 in89–104 in5.40 kgRequest quote
RT22-0111Galvanized steel, 1.5 inPlastic, 2 × 4 in92–107 in5.55 kgRequest quote
RT22-0112Galvanized steel, 1.5 inPlastic, 2 × 4 in101–116 in5.80 kgRequest quote
RT22-0104Aluminum; Φ38Plastic, 2 × 4 inConfirm range and units4.10 kgRequest quote
RT22-0105Aluminum; Φ38Plastic, 2 × 4 inConfirm range and units4.25 kgRequest quote
RT22-0106Aluminum; Φ38Plastic, 2 × 4 inConfirm range and units4.40 kgRequest quote
RT22-0107Aluminum; Φ38Plastic, 2 × 4 inConfirm range and units4.50 kgRequest quote
RT22-0113Aluminum; Φ42Plastic, 2 × 4 inConfirm range and units4.20 kgRequest quote
RT22-0114Aluminum; Φ42Plastic, 2 × 4 inConfirm range and units4.40 kgRequest quote
RT22-0115Aluminum; Φ42Plastic, 2 × 4 inConfirm range and units4.50 kgRequest quote
RT22-0116Aluminum; Φ42Plastic, 2 × 4 inConfirm range and units4.65 kgRequest quote
RT22-0117Two-piece galvanized steel; Φ38Plastic, 2 × 4 inConfirm range and units5.50 kgRequest quote
RT22-0118Two-piece galvanized steel; Φ38Plastic, 2 × 4 inConfirm range and units5.70 kgRequest quote
RT22-0119Two-piece galvanized steel; Φ38Plastic, 2 × 4 inConfirm range and units5.85 kgRequest quote
RT22-0120Two-piece galvanized steel; Φ38Plastic, 2 × 4 inConfirm range and units6.10 kgRequest quote
RT22-0121Two-piece aluminum; Φ38Plastic, 2 × 4 inConfirm range and units4.40 kgRequest quote
RT22-0122Two-piece aluminum; Φ38Plastic, 2 × 4 inConfirm range and units4.55 kgRequest quote
RT22-0123Two-piece aluminum; Φ38Plastic, 2 × 4 inConfirm range and units4.65 kgRequest quote
RT22-0134Two-piece aluminum; Φ38Plastic, 2 × 4 inConfirm range and units4.80 kgRequest quote
RT22-0135Two-piece galvanized steel; Φ42Plastic, 2 × 4 inConfirm range and units6.20 kgRequest quote
RT22-0136Two-piece galvanized steel; Φ42Plastic, 2 × 4 inConfirm range and units6.50 kgRequest quote
RT22-0137Two-piece aluminum; Φ42Plastic, 2 × 4 inConfirm range and units4.60 kgRequest quote
RT22-0138Two-piece aluminum; Φ42Plastic, 2 × 4 inConfirm range and units4.80 kgRequest quote
RT22-0139Two-piece aluminum; Φ42Plastic, 2 × 4 inConfirm range and units4.90 kgRequest quote
RT22-0140Two-piece aluminum; Φ42Plastic, 2 × 4 inConfirm range and units5.05 kgRequest quote

Product selection & purchasing

Sourcing Adjustable cargo bars

Applications & product range

Cargo bars use adjustable tubes and end pads to brace suitable loads inside an enclosed cargo space. This range includes one-piece and two-piece catalog configurations, with separate rows for tube construction, foot pads and adjustment range.

Configuration & purchasing requirements

Provide the clear wall-to-wall span, wall construction, cargo weight and pad preference. Select a confirmed adjustment range and obtain the load restraint specification for the complete installation.
