Truck door locking handles — RT01-0801 / RT01-0802

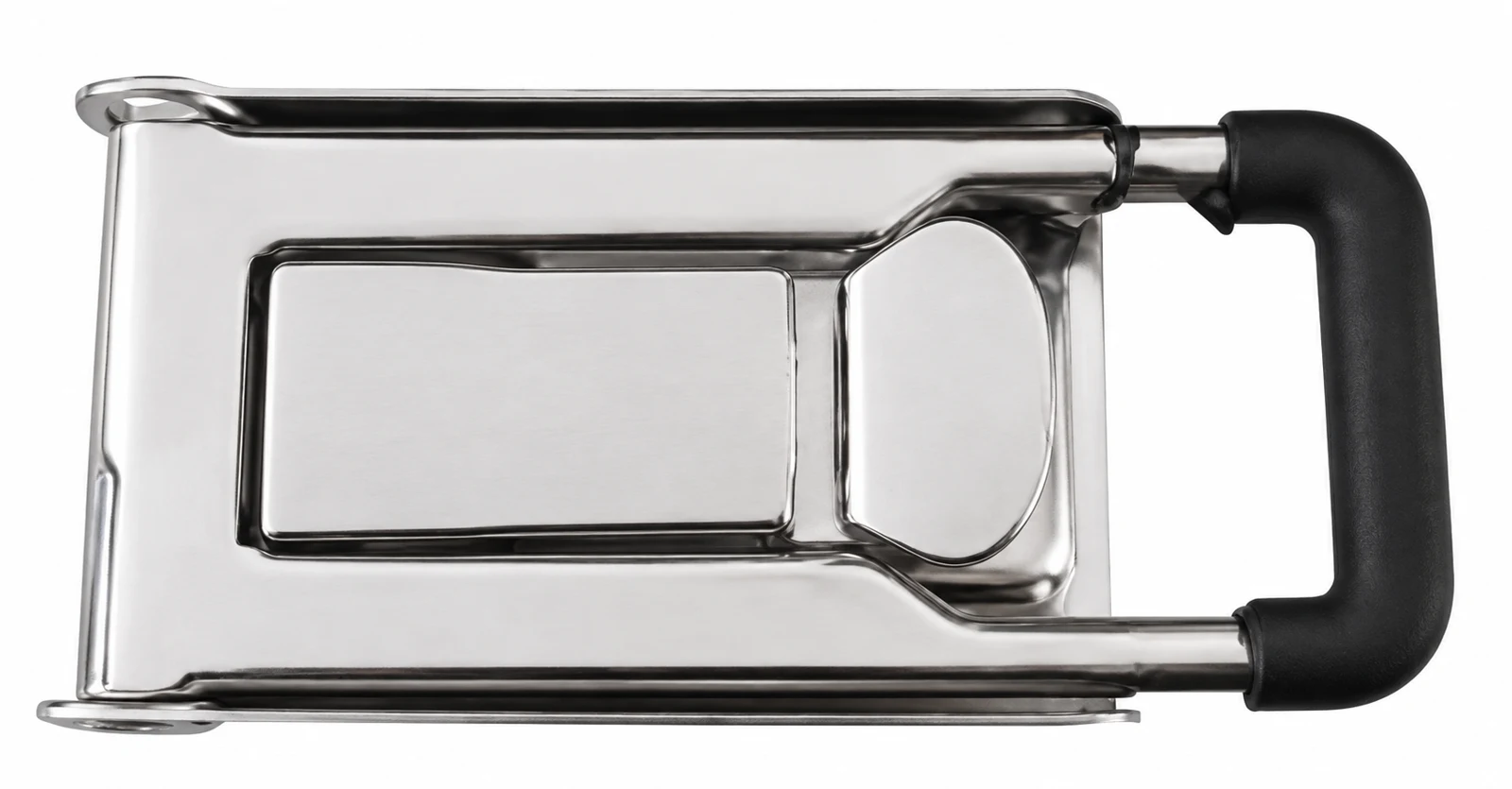

RT01-0801 / RT01-0802 Shared catalog image for RT01-0801 / RT01-0802. Material and size may differ by reference.
RT01-0801 / RT01-0802 RT01-0901 / RT01-0902 RT07-2001 / RT07-2002
Truck door locking handles — RT01-0801 / RT01-0802

Shared catalog image for RT01-0801 / RT01-0802. Material and size may differ by reference.

Truck & trailer hardware

Truck door locking handles

Recessed operating handles and locking-bar handles for truck body doors. Compare RT01 and RT07 references by mechanism, mounting geometry and finish.

Reference12 catalog references
Request a quote Ask for the catalog

MOQ, customization and lead time depend on the selected model and order.

Compare 12 catalog references ↓

Reference specifications

Truck door locking handles reference specifications
Product rangeTruck door locking handles
Materials listedSt37-2 steel / AISI 304 stainless steel

Specifications shown are catalog references. Your quotation confirms the current model, drawing and agreed requirements for the order.

Quotation requirements

Specify your application.

  • Model and required quantity
  • Mounting dimensions and mating components
  • Material, finish and operating conditions
  • Destination, packaging and documentation requirements
Send your requirements ↗

Models & specifications

12 catalog references

Compare catalog references below. Select a reference to include it in your inquiry; current specifications and options are confirmed with your quotation.

Truck door locking handles: catalog model comparison
ModelMaterialSurface finishCatalog weightInquiry
RT01-0801St37-2 steelZinc plated1.36 kgRequest quote
RT01-0802AISI 304 stainless steelElectropolished1.36 kgRequest quote

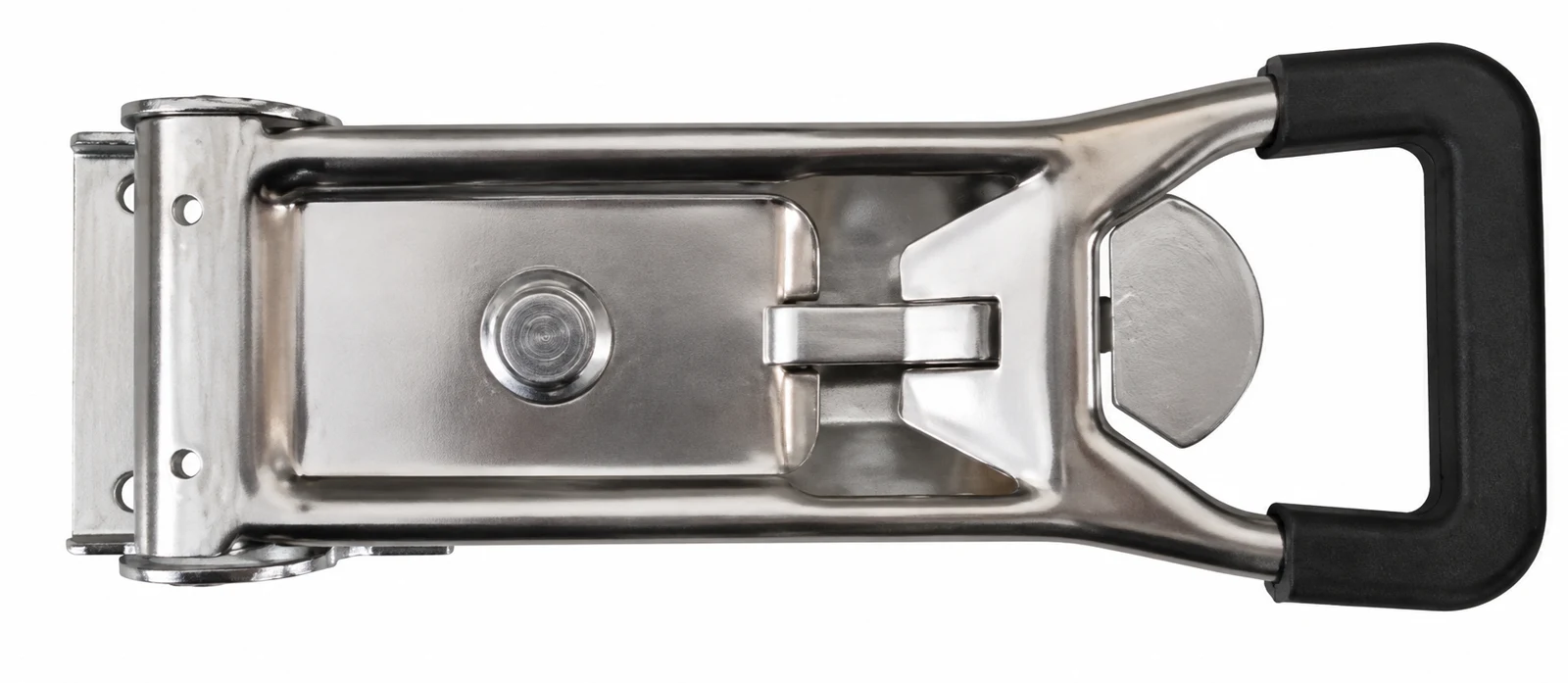

RT01-0901St37-2 steelZinc plated1.16 kgRequest quote
RT01-0902AISI 304 stainless steelElectropolished1.16 kgRequest quote
RT01-1001St37-2 steelZinc plated0.96 kgRequest quote
RT01-1002AISI 304 stainless steelElectropolished0.96 kgRequest quote

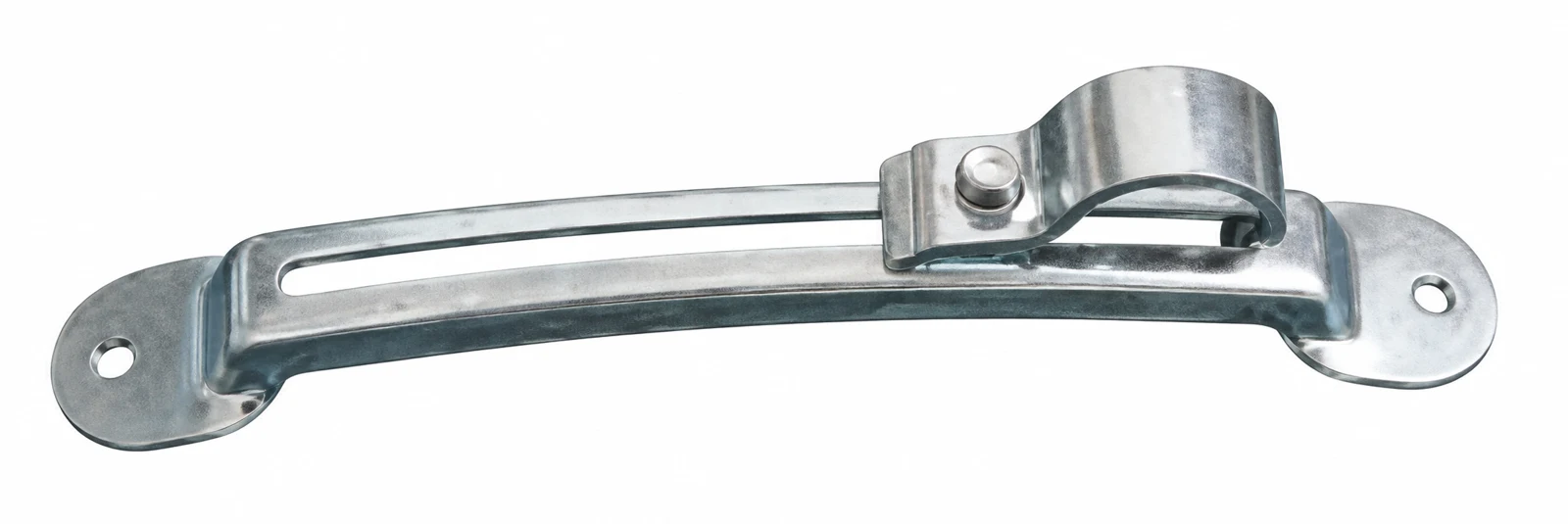

RT07-2001St37-2 steelZinc plated0.55 kgView drawing ↓ Request quote
RT07-2002AISI 304 stainless steelElectropolished0.55 kgView drawing ↓ Request quote
RT07-2101St37-2 steelPowder coated0.55 kgRequest quote
RT07-2102AISI 304 stainless steelElectropolished0.55 kgRequest quote
RT07-2201St37-2 steelZinc plated0.50 kgRequest quote
RT07-2202AISI 304 stainless steelElectropolished0.50 kgRequest quote

Dimensions & drawings

1 reference drawings

Match the model number before using a drawing. These catalog references support initial selection; your quotation confirms the current drawing and supplied configuration.

Product selection & purchasing

Sourcing Truck door locking handles

Applications & product range

This range includes recessed lever assemblies and operating bars with a rod-clamping feature. The mechanisms are used as part of a vehicle body door-locking assembly; they are not interchangeable with general-purpose grab handles.

Configuration & purchasing requirements

Specify the locking rod diameter, handle swing, mounting envelope and mating mechanism. Identify the required steel or stainless reference and whether a keeper, padlock provision or other components are needed.
