2020 catalog

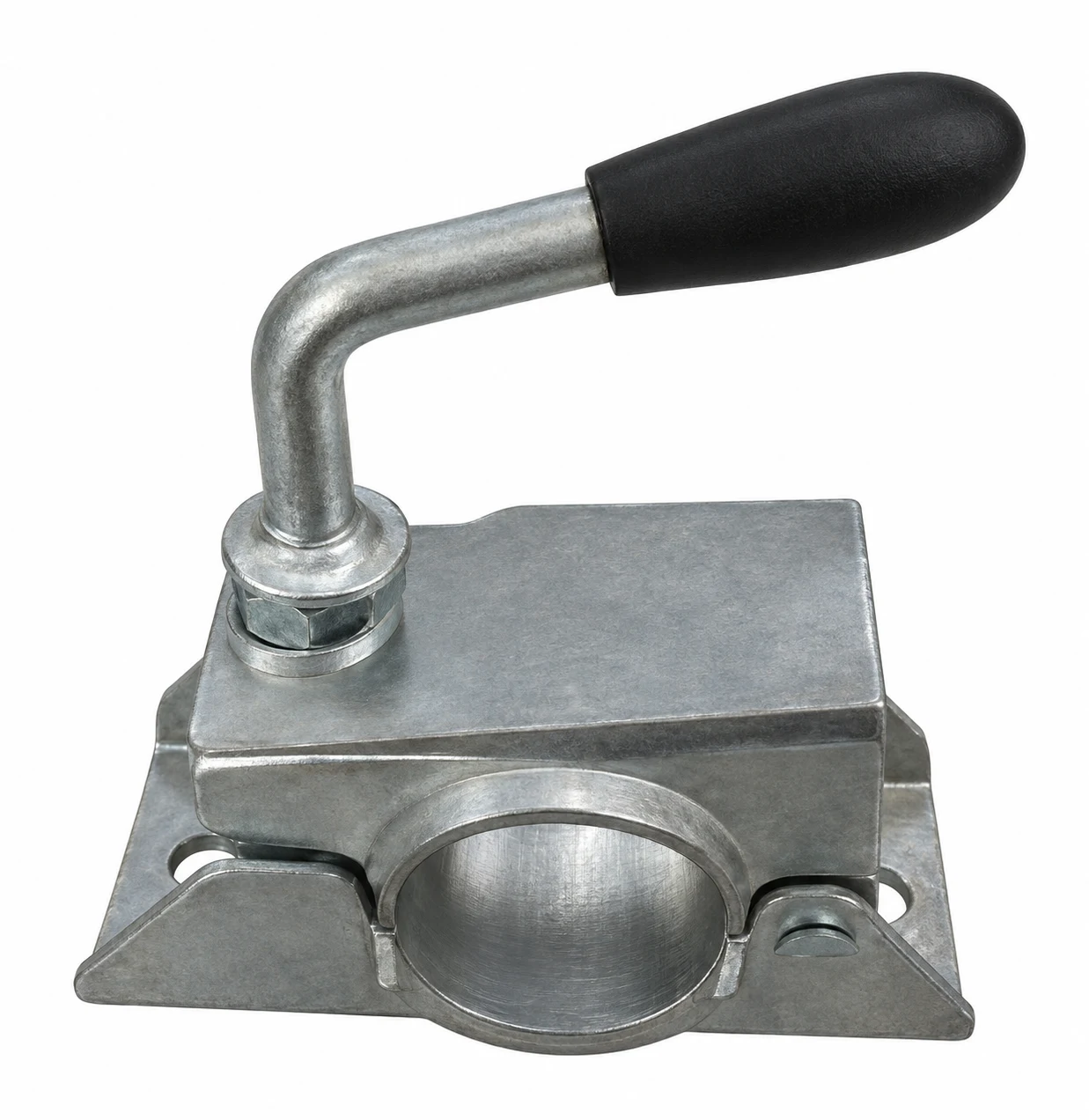

RT10-0101
Original dimension notation retained. Confirm units, tolerances and the current drawing before dimensional approval.
Truck & trailer hardware
Trailer jack tube clamps
Lever-operated steel tube clamps for trailer jockey wheels and support legs, with four catalog bore configurations.
Reference4 catalog references
MOQ, customization and lead time depend on the selected model and order.
Compare 4 catalog references ↓Reference specifications
| Product range | Trailer jack tube clamps |
|---|---|
| Reference configurations | 4 |
Specifications shown are catalog references. Your quotation confirms the current model, drawing and agreed requirements for the order.
Quotation requirements
Specify your application.
- Model or configuration and order quantity
- Mounting dimensions and matching components
- Required performance and supporting documentation
- Finish, packaging and destination
Models & specifications
4 catalog referencesCompare catalog references below. Select a reference to include it in your inquiry; current specifications and options are confirmed with your quotation.
| Model | Material / finish | Bore notation in drawing | Catalog weight | Inquiry |
|---|---|---|---|---|
| RT10-0101 | St37-2 steel / zinc plated | Φ48; confirm units and fit | 0.80 kg | View drawing ↓ Request quote |
| RT10-0201 | St37-2 steel / zinc plated | Φ48; confirm units and fit | 0.96 kg | View drawing ↓ Request quote |
| RT10-0301 | St37-2 steel / zinc plated | Φ60; confirm units and fit | 1.62 kg | View drawing ↓ Request quote |
| RT10-0401 | St37-2 steel / zinc plated | Φ35; confirm units and fit | 0.77 kg | View drawing ↓ Request quote |
No matching references. Clear the search or send us the model you need.
Dimensions & drawings
4 reference drawingsMatch the model number before using a drawing. These catalog references support initial selection; your quotation confirms the current drawing and supplied configuration.
2020 catalog

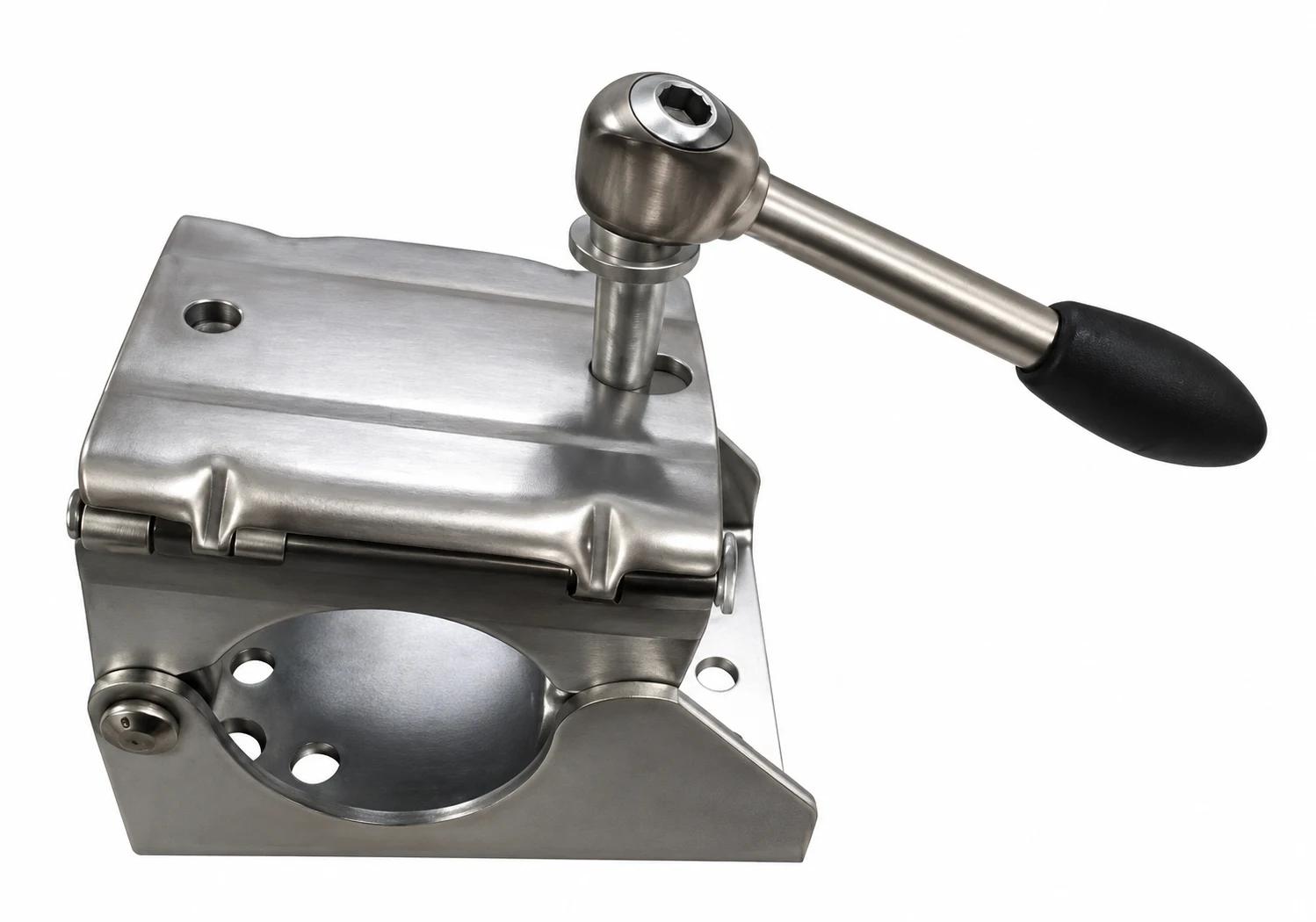

RT10-0301
Original dimension notation retained. Confirm units, tolerances and the current drawing before dimensional approval.
2020 catalog
RT10-0201
Original dimension notation retained. Confirm units, tolerances and the current drawing before dimensional approval.
2020 catalog
RT10-0401
Original dimension notation retained. Confirm units, tolerances and the current drawing before dimensional approval.
No drawing matches that model. Send its reference with your inquiry to request a current drawing.
