2020 catalog
RT11-1101
Original dimension notation retained. Confirm units, tolerances and the current drawing before dimensional approval.
Truck & trailer hardware
Square-tube trailer jacks
Manual square-tube trailer support jacks with crank operation and fixed foot plates.
Reference3 catalog references
MOQ, customization and lead time depend on the selected model and order.
Compare 3 catalog references ↓Reference specifications
| Product range | Square-tube trailer jacks |
|---|---|
| Reference configurations | 3 |
Specifications shown are catalog references. Your quotation confirms the current model, drawing and agreed requirements for the order.
Quotation requirements
Specify your application.
- Model or configuration and order quantity
- Mounting dimensions and matching components
- Required performance and supporting documentation
- Finish, packaging and destination
Models & specifications
3 catalog referencesCompare catalog references below. Select a reference to include it in your inquiry; current specifications and options are confirmed with your quotation.
| Model | Material / finish | Catalog weight | Inquiry |
|---|---|---|---|

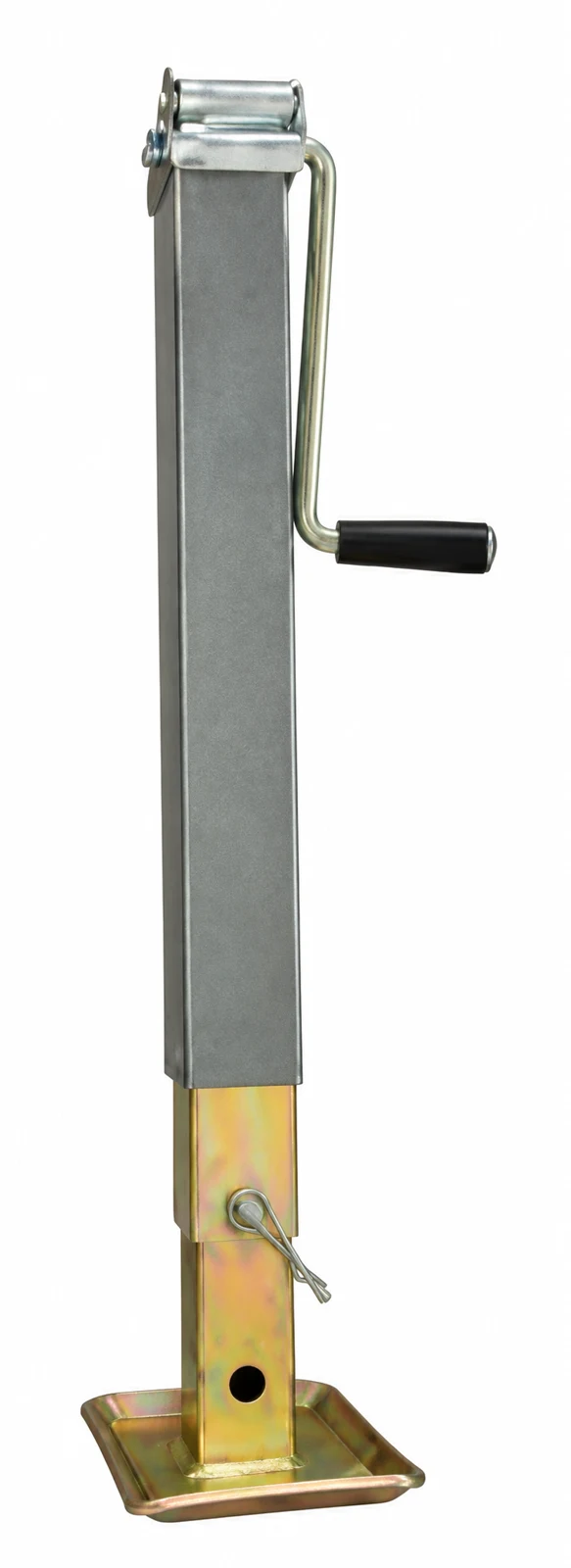

| RT11-1101 | St37-2 steel / Zinc plated and painted | 10.50 kg | View drawing ↓ Request quote |
| RT11-1201 | St37-2 steel / Zinc plated and painted | 9.90 kg | View drawing ↓ Request quote |

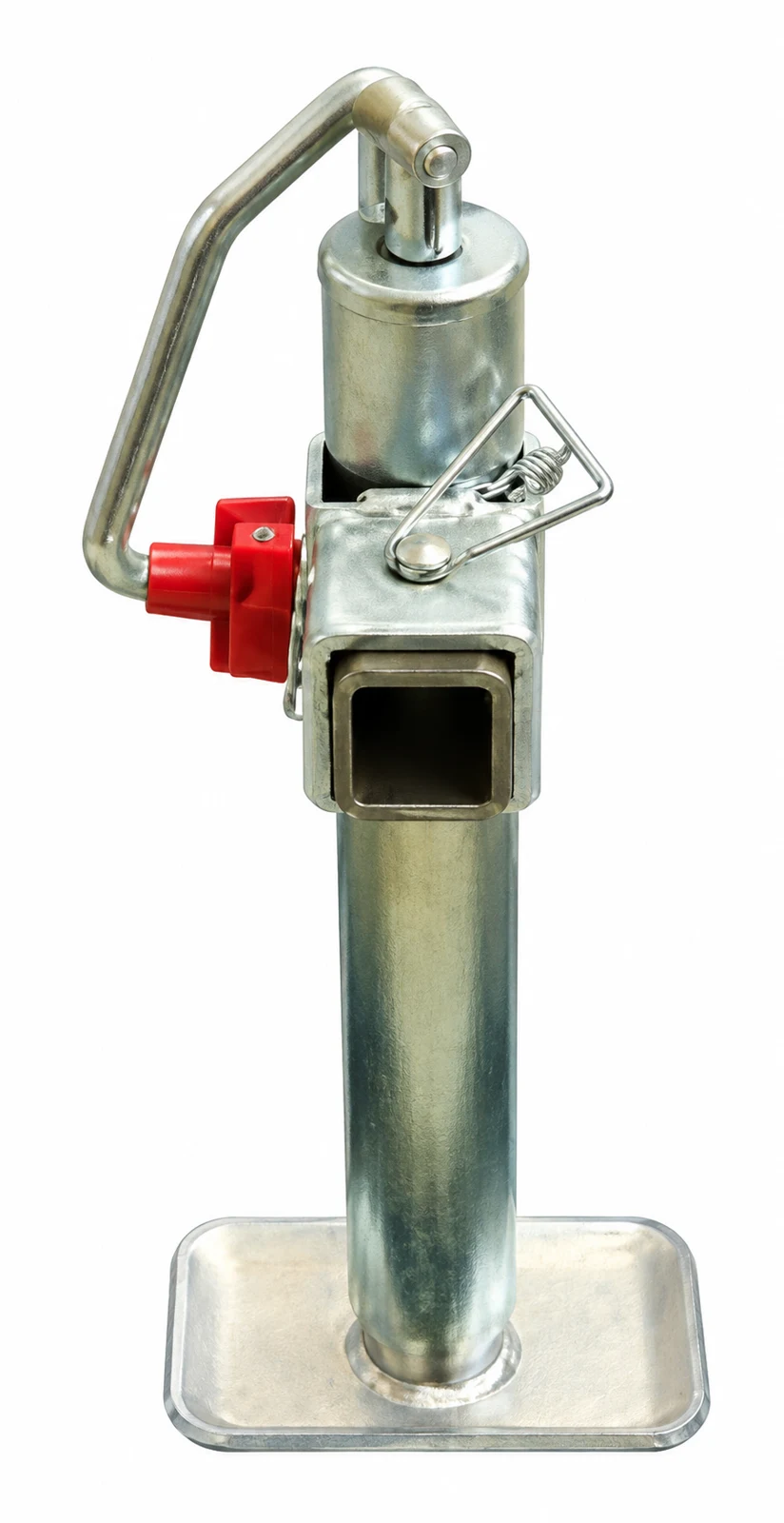

| RT11-1301 | St37-2 steel / Zinc plated | 6.60 kg | Request quote |
No matching references. Clear the search or send us the model you need.
Dimensions & drawings
2 reference drawingsMatch the model number before using a drawing. These catalog references support initial selection; your quotation confirms the current drawing and supplied configuration.
2020 catalog
RT11-1201
Original dimension notation retained. Confirm units, tolerances and the current drawing before dimensional approval.
No drawing matches that model. Send its reference with your inquiry to request a current drawing.
