2020 catalog
RT09-1701 / RT09-1702 / RT09-1703
Original dimension notation retained. Confirm units, tolerances and the current drawing before dimensional approval.
Truck & trailer hardware
Trailer support legs
Steel support-leg references with crank, loop-handle and angled configurations for trailer integration.
Reference6 catalog references
MOQ, customization and lead time depend on the selected model and order.
Compare 6 catalog references ↓Reference specifications
| Product range | Trailer support legs |
|---|---|
| Reference configurations | 6 |
Specifications shown are catalog references. Your quotation confirms the current model, drawing and agreed requirements for the order.
Quotation requirements
Specify your application.
- Model or configuration and order quantity
- Mounting dimensions and matching components
- Required performance and supporting documentation
- Finish, packaging and destination
Models & specifications
6 catalog referencesCompare catalog references below. Select a reference to include it in your inquiry; current specifications and options are confirmed with your quotation.
| Model | Material / finish | Configuration | Catalog weight | Inquiry |
|---|---|---|---|---|
| RT09-1501 | St37-2 steel / zinc plated | Crank-operated support leg | 2.47 kg | View drawing ↓ Request quote |
| RT09-1601 | St37-2 steel / zinc plated | Support leg with bent upper end | 1.50 kg | View drawing ↓ Request quote |

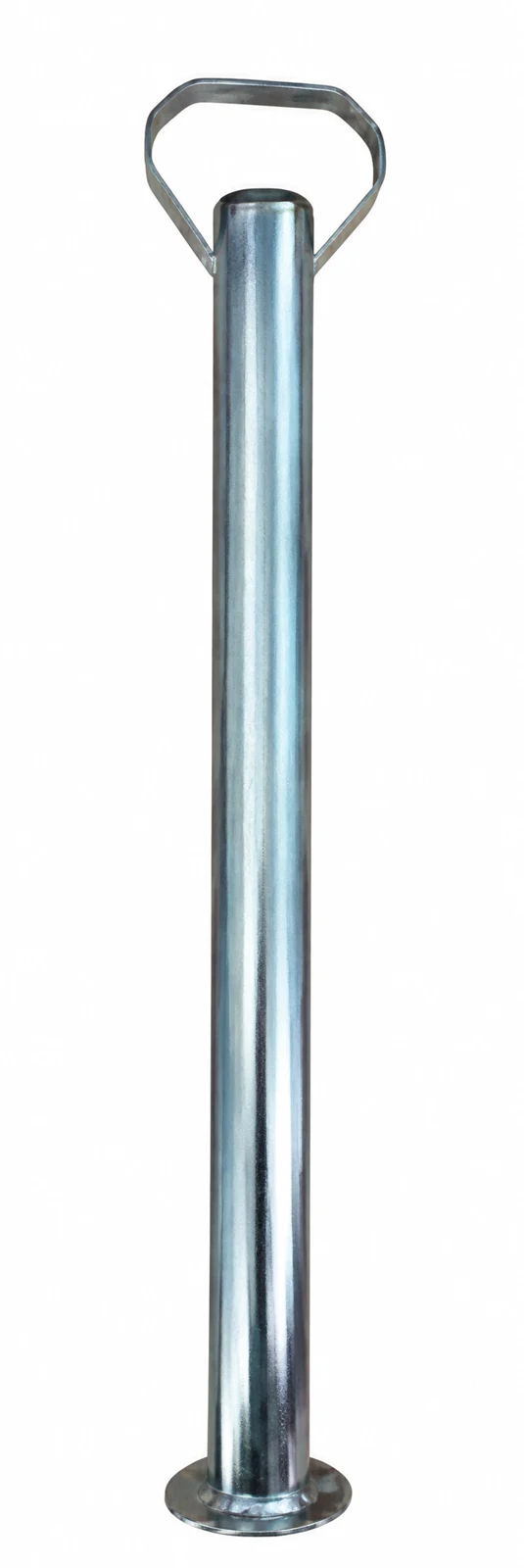

| RT09-1701 | St37-2 steel / zinc plated | Loop handle; source L=500 | 1.45 kg | View drawing ↓ Request quote |
| RT09-1702 | St37-2 steel / zinc plated | Loop handle; source L=600 | 1.61 kg | View drawing ↓ Request quote |
| RT09-1703 | St37-2 steel / zinc plated | Loop handle; source L=700 | 1.80 kg | View drawing ↓ Request quote |
| RT09-1801 | St37-2 steel / zinc plated | Angled support leg | 1.60 kg | View drawing ↓ Request quote |
No matching references. Clear the search or send us the model you need.
Dimensions & drawings
4 reference drawingsMatch the model number before using a drawing. These catalog references support initial selection; your quotation confirms the current drawing and supplied configuration.
2020 catalog
RT09-1501
Original dimension notation retained. Confirm units, tolerances and the current drawing before dimensional approval.
2020 catalog
RT09-1601
Original dimension notation retained. Confirm units, tolerances and the current drawing before dimensional approval.
2020 catalog
RT09-1801
Original dimension notation retained. Confirm units, tolerances and the current drawing before dimensional approval.
No drawing matches that model. Send its reference with your inquiry to request a current drawing.
