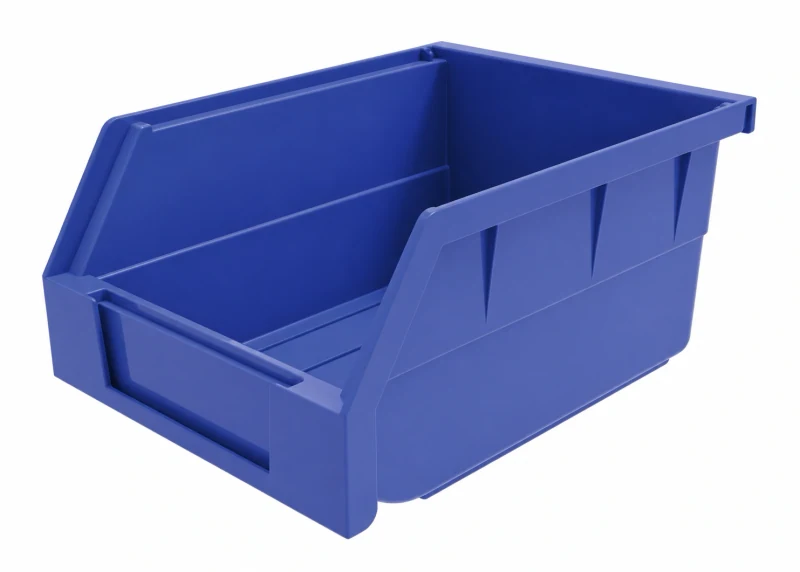

Hanging parts bins

Polypropylene hanging parts bins for component storage and organization. Compare TK011–TK015 sizes and request color, mounting and volume-pricing options.

ReferenceTK011–TK015

Request a quote Ask for the catalog

MOQ, customization and lead time depend on the selected model and order.

Compare 5 catalog references ↓

Reference specifications

Hanging parts bins reference specifications
Catalog series	TK011–TK015
Material listed	Impact polypropylene (PP)
Outside sizes (W × D × H)	105 × 110 × 50 to 140 × 270 × 125 mm
Catalog colors	Red, yellow and blue

Specifications shown are catalog references. Your quotation confirms the current model, drawing and agreed requirements for the order.

Quotation requirements

Specify your application.

Required inside dimensions
Panel or rail mounting arrangement
Color, labels and dividers
Order quantity by size and color

Send your requirements ↗

Models & specifications

5 catalog references

Compare catalog references below. Select a reference to include it in your inquiry; current specifications and options are confirmed with your quotation.

Hanging parts bins: catalog model comparison
Model	Outside W × D × H (mm)	Inside W × D × H (mm)	Carton (mm)	Quantity / carton	Inquiry
TK011	105 × 110 × 50	91 × 95 × 26	255 × 250 × 205	24	Request quote
TK012	105 × 140 × 75	91 × 124 × 36	305 × 220 × 280	24	Request quote
TK013	105 × 190 × 75	91 × 174 × 39	415 × 225 × 260	24	Request quote
TK014	140 × 220 × 125	120 × 202 × 61	450 × 310 × 260	12	Request quote
TK015	140 × 270 × 125	120 × 252 × 61	450 × 310 × 290	12	Request quote

Product details

A closer look at construction and available accessories.

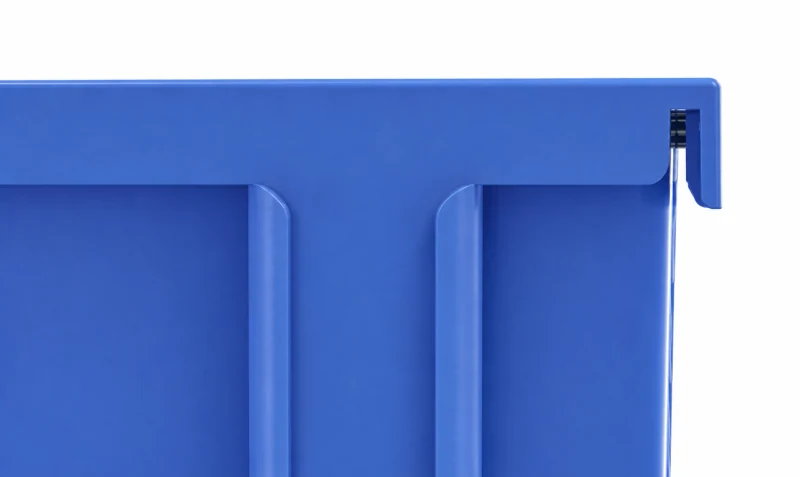

Hanging edge — Hanging parts bins — Hanging edge
Close-up of the rear mounting edge used with a compatible louvered panel.

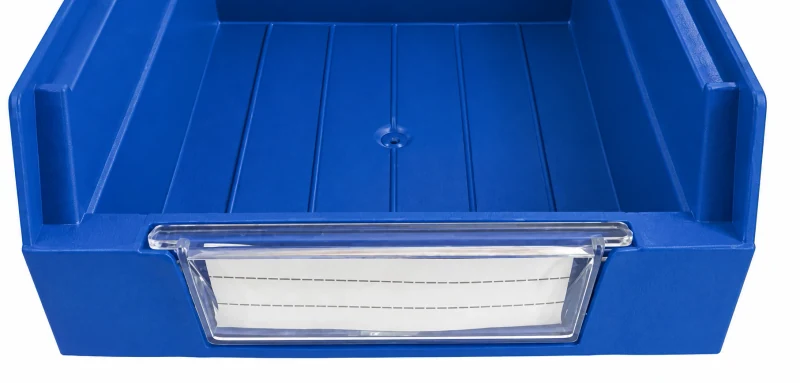

Front label cover — Hanging parts bins — Front label cover
Clear label-cover arrangement for identifying stored parts. Specify label accessories with your inquiry.

In use & system examples

Examples to help plan your installation. The selected model and quotation define compatibility and what is included.

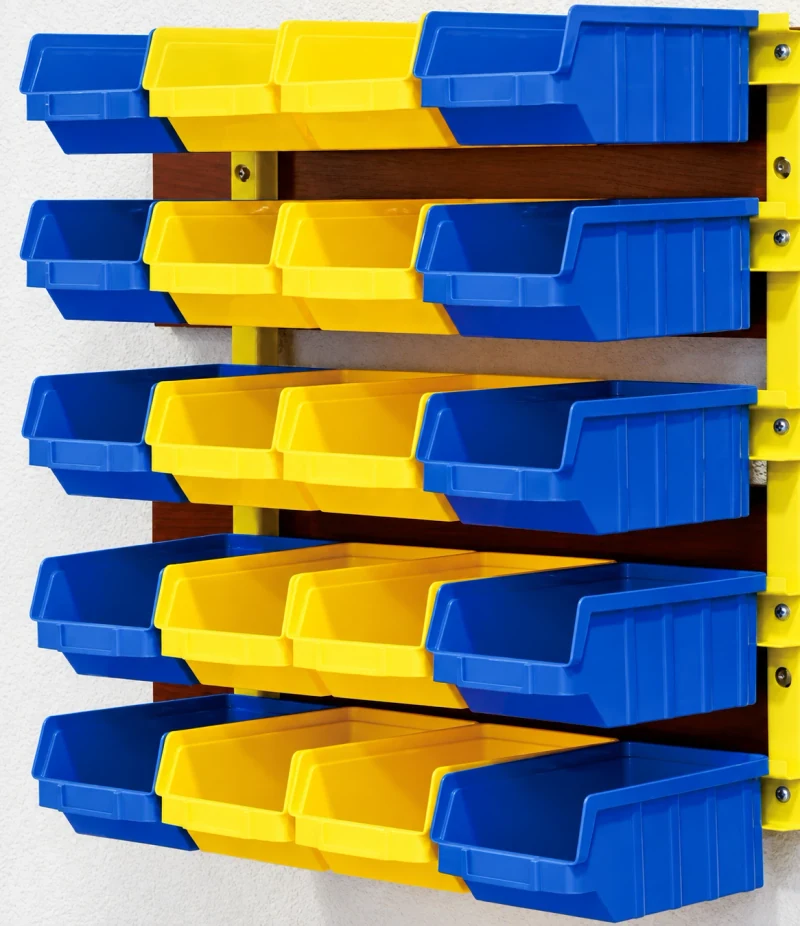

Bins on a wall panel — Hanging parts bins — Bins on a wall panel
Example of a mixed-color hanging-bin layout. Panel, bin sizes and quantities are selected separately for the installation.

Product selection & purchasing

Sourcing Hanging parts bins

Applications & product range

Open-front parts storage for workbenches, component organization and storage-system purchasing. The TK011–TK015 series lists impact polypropylene construction and multiple sizes. Red, yellow and blue are shown as catalog color options.

Configuration & purchasing requirements

Check usable internal space as well as the outside dimensions. For hanging installations, provide the panel or rail details so mounting compatibility can be reviewed. Specify quantities by size and color, plus any label or divider requirements, before requesting a final configuration.
