Industrial storage

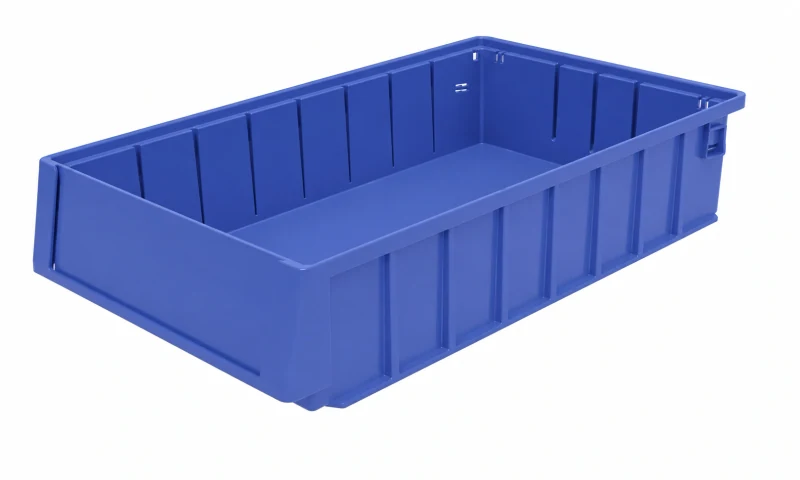

Polypropylene partition bins in 300–600 mm depths and 90 or 140 mm heights. Compare 12 catalog models for divided small-parts storage.
MOQ, customization and lead time depend on the selected model and order.
Compare 12 catalog references ↓| Material listed | Impact polypropylene (PP) |
|---|---|
| Depth options | 300 / 400 / 500 / 600 mm |
| Height options | 90 / 140 mm |
Specifications shown are catalog references. Your quotation confirms the current model, drawing and agreed requirements for the order.
Quotation requirements
Compare catalog references below. Select a reference to include it in your inquiry; current specifications and options are confirmed with your quotation.
| Model | Outside D × W × H (mm) | Inside D × W × H (mm) | Catalog volume (L) | Quantity / carton | Inquiry |
|---|---|---|---|---|---|
| TK3109 | 300 × 117 × 90 | 262 × 93 × 82 | 2.0 | 48 | Request quote |
| TK4109 | 400 × 117 × 90 | 362 × 93 × 82 | 2.7 | 24 | Request quote |
| TK5109 | 500 × 117 × 90 | 462 × 93 × 82 | 3.5 | 24 | Request quote |
| TK6109 | 600 × 117 × 90 | 562 × 93 × 82 | 4.3 | 24 | Request quote |
| TK3209 | 300 × 234 × 90 | 262 × 210 × 82 | 4.5 | 24 | Request quote |
| TK4209 | 400 × 234 × 90 | 362 × 210 × 82 | 6.2 | 12 | Request quote |
| TK5209 | 500 × 234 × 90 | 462 × 210 × 82 | 7.9 | 12 | Request quote |
| TK6209 | 600 × 234 × 90 | 562 × 210 × 82 | 9.7 | 12 | Request quote |
| TK3214 | 300 × 234 × 140 | 262 × 210 × 132 | 7.2 | 16 | Request quote |
| TK4214 | 400 × 234 × 140 | 362 × 210 × 132 | 10 | 8 | Request quote |
| TK5214 | 500 × 234 × 140 | 462 × 210 × 132 | 12.8 | 8 | Request quote |
| TK6214 | 600 × 234 × 140 | 562 × 210 × 132 | 15.6 | 8 | Request quote |
A closer look at construction and available accessories.

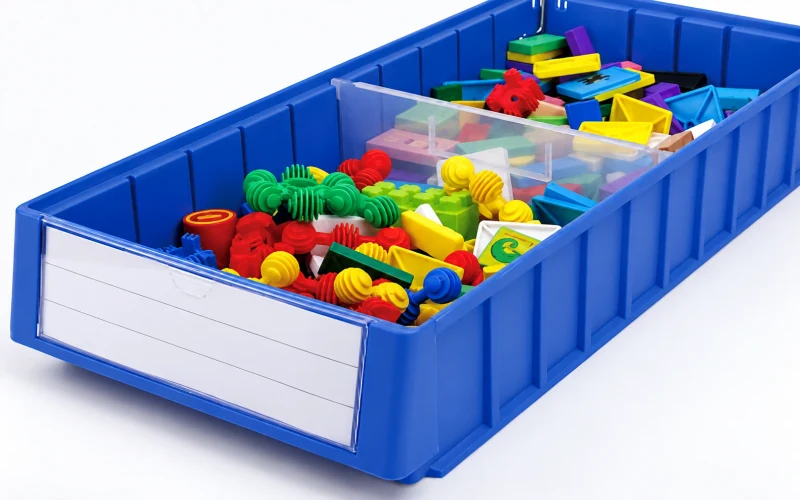

Removable dividers separate small components within one bin. Contents illustrate the layout and are not supplied.

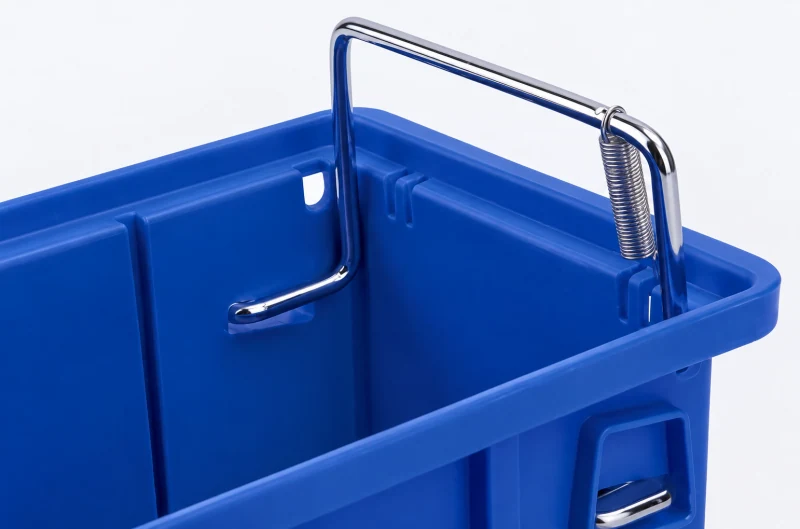

Wire bar and spring arrangement shown for a pull-out bin installation. Confirm the bin and shelf fit together.
Examples to help plan your installation. The selected model and quotation define compatibility and what is included.

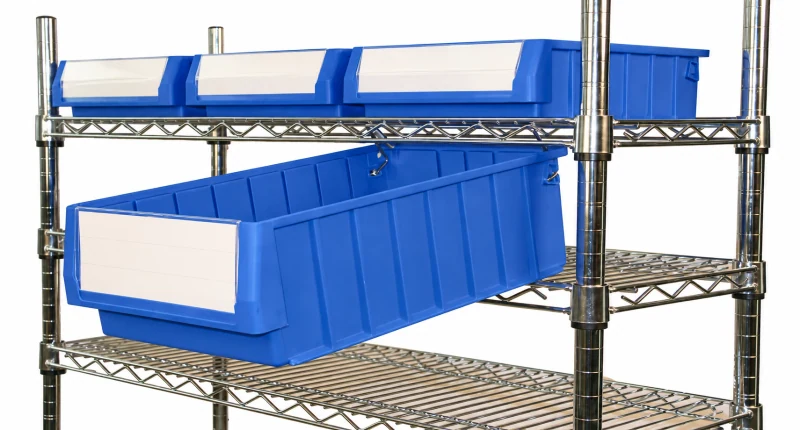

Illustrated shelf installation with a partly extended bin. Confirm the required support and stop accessories; shelving is not included with a bin-only order.
