Industrial storage

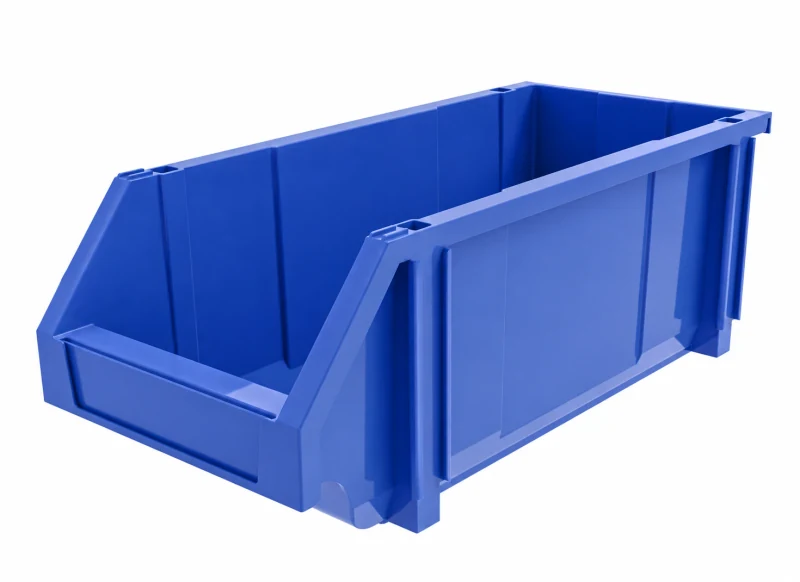

Open-front stacking and hanging parts bins in nine TK sizes, including wide partitionable formats for component storage and picking racks.
MOQ, customization and lead time depend on the selected model and order.
Compare 9 catalog references ↓| Material listed | Impact polypropylene (PP) |
|---|---|
| Catalog colors | Red, yellow and blue |
| Format | Open-front; stacking and hanging |
| Partitionable references | TK007 / TK008 / TK010 |
Specifications shown are catalog references. Your quotation confirms the current model, drawing and agreed requirements for the order.
Quotation requirements
Compare catalog references below. Select a reference to include it in your inquiry; current specifications and options are confirmed with your quotation.
| Model | Outside W × D × H (mm) | Inside W × D × H (mm) | Format | Quantity / carton | Inquiry |
|---|---|---|---|---|---|
| TK001 | 100 × 160 × 74 | 81 × 141 × 70 | Stacking / hanging | 24 | Request quote |
| TK002 | 150 × 240 × 124 | 128 × 222 × 120 | Stacking / hanging | 36 | Request quote |
| TK003 | 200 × 340 × 155 | 174 × 317 × 150 | Stacking / hanging | 18 | Request quote |
| TK004 | 200 × 450 × 177 | 172 × 414 × 170 | Stacking / hanging | 12 | Request quote |
| TK005 | 300 × 450 × 177 | 272 × 414 × 170 | Stacking / hanging | 8 | Request quote |
| TK006 | 600 × 400 × 220 | 540 × 367 × 210 | Stacking / hanging | 4 | Request quote |
| TK007 | 214 × 280 × 175 | 189 × 259 × 87 | Partitionable | 16 | Request quote |
| TK008 | 214 × 370 × 175 | 186 × 334 × 94 | Partitionable | 8 | Request quote |
| TK010 | 420 × 370 × 175 | 392 × 334 × 94 | Partitionable | 8 | Request quote |
A closer look at construction and available accessories.

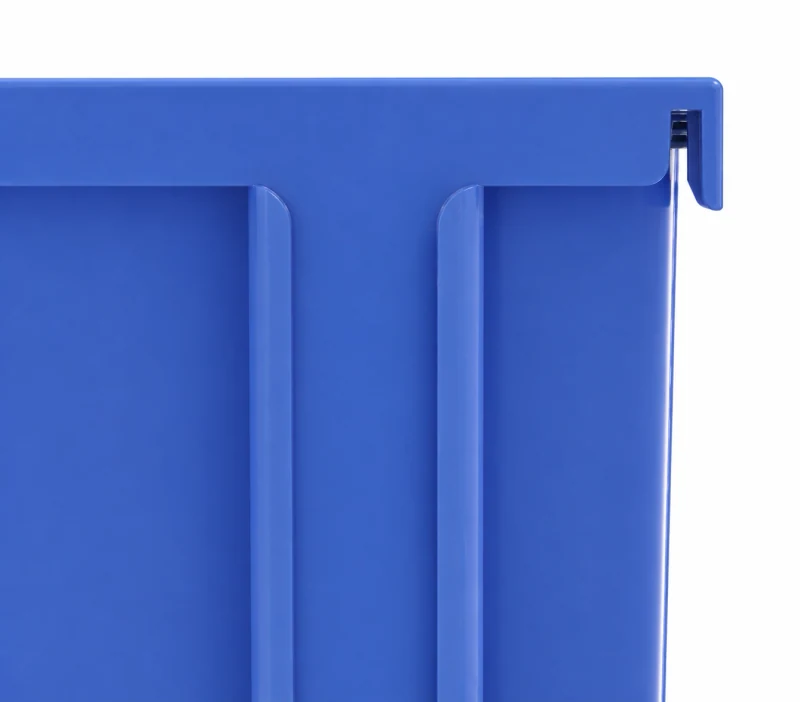

Rear lip detail for hanging on a compatible louvered panel. Match the bin and panel dimensions when specifying the system.

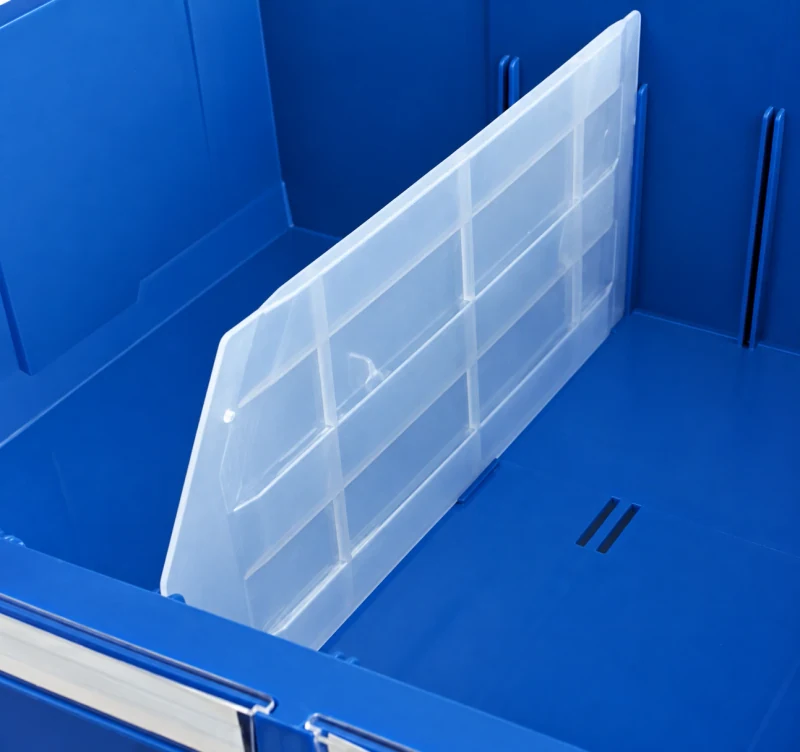

Divider fitted into the molded internal slots. Divider compatibility and quantities depend on the bin size.
